Frame

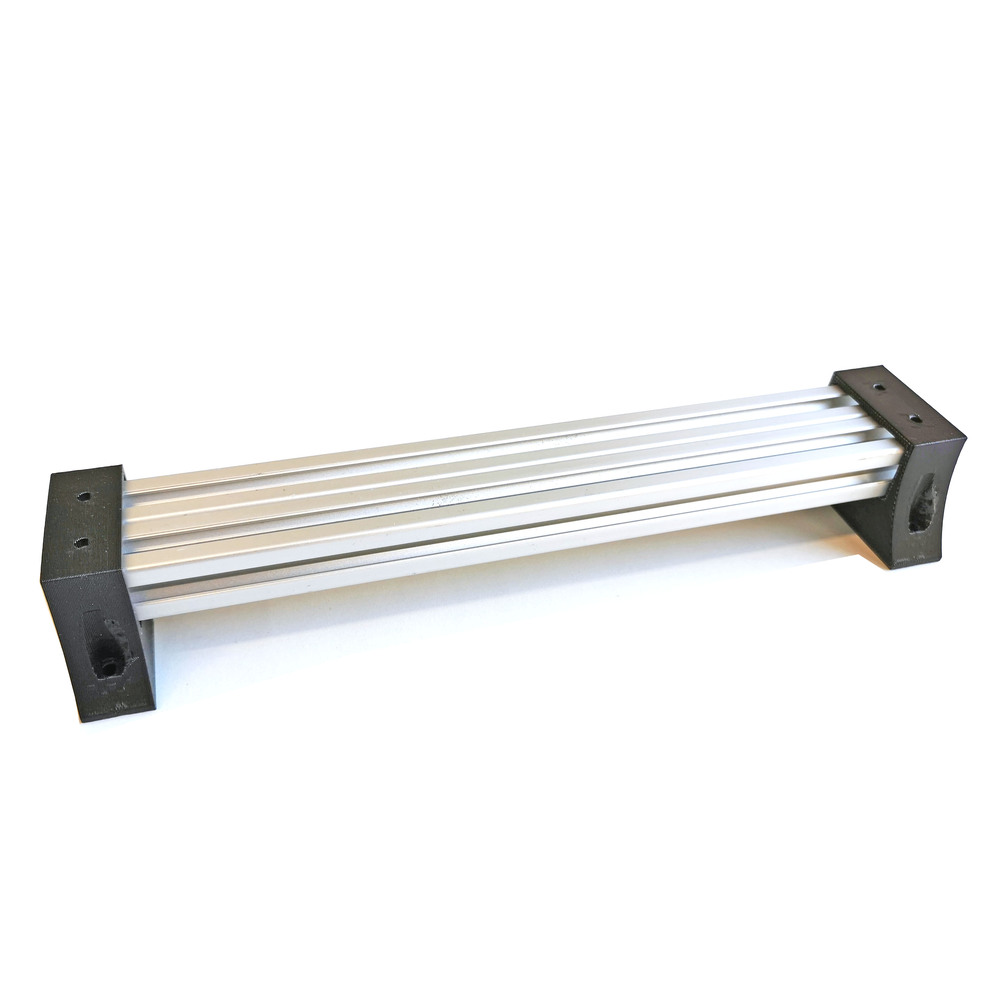

The mechanisms and all components of the instruments rely on a structure made of 20x20mm section extruded aluminium bars (Bosch Rexroth ref. 3842992888/3000).

It is composed by:

• 2x 280mm bar
• 4x 260mm bar

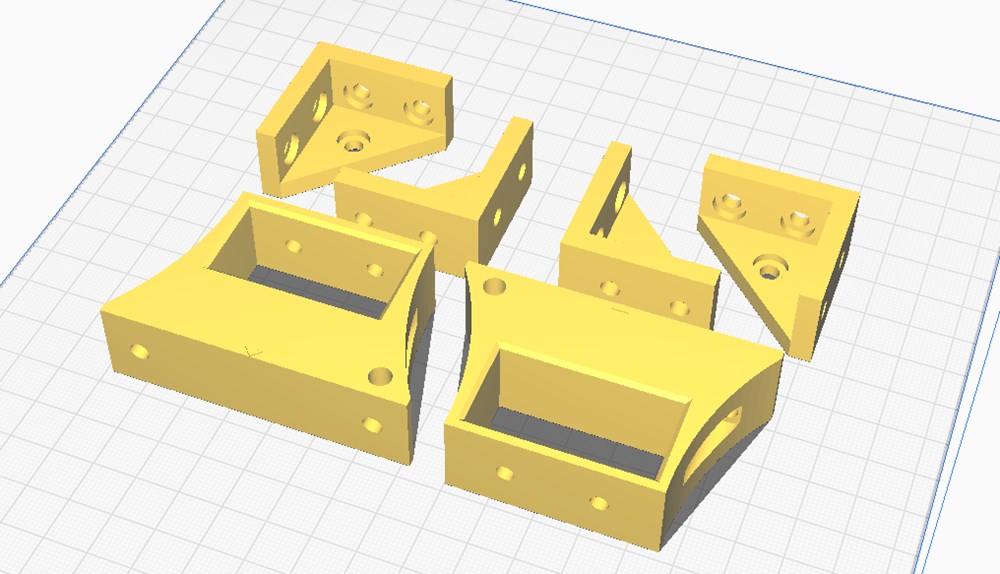

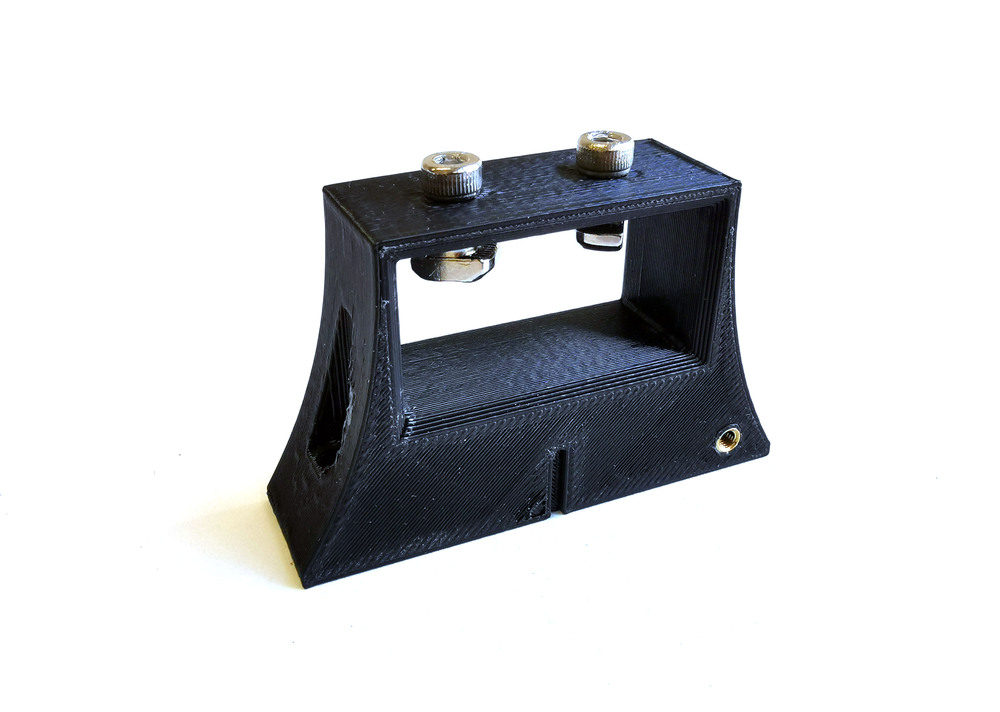

Those bars are connected together with 3D printed parts.
