Box

The box has a 290x290mm footprint and is made with 3mm MDF wood sheets. You can laser cut it on 300x600mm sheets, suitables for most laser cutters:

  • 4 pieces for sides
  • 1 top and one bottom layers
  • Top plate constituted by 2 layers

The vector files are available here, or in the github repository under lasercutter folder.

  • 4_sides.cdr (1 MB)
  • top_and_bottom_sides.cdr (1 MB)
  • top_plate.cdr (20 KB)

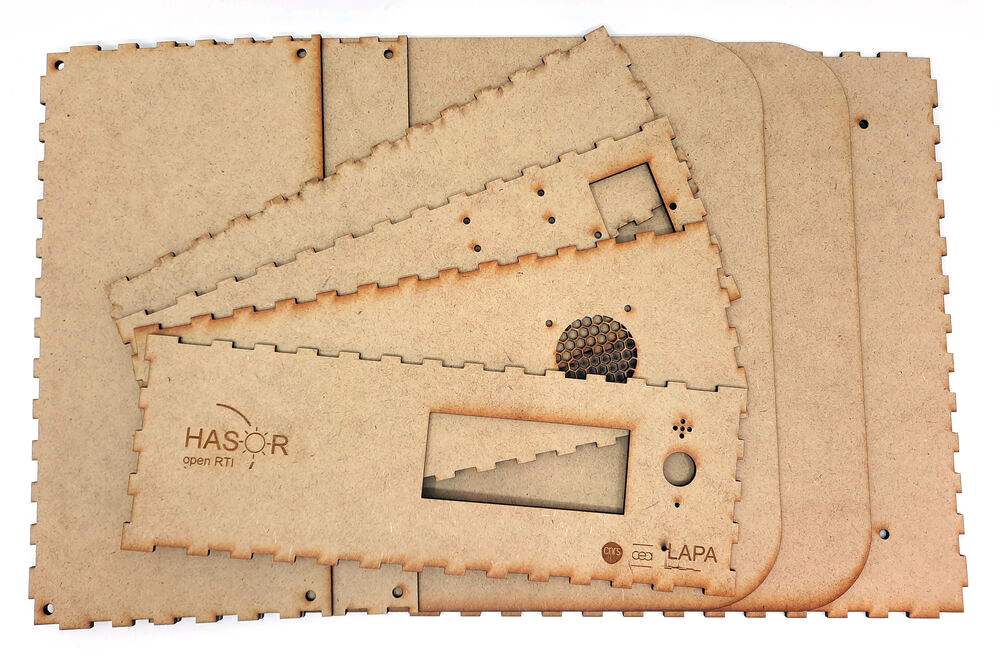

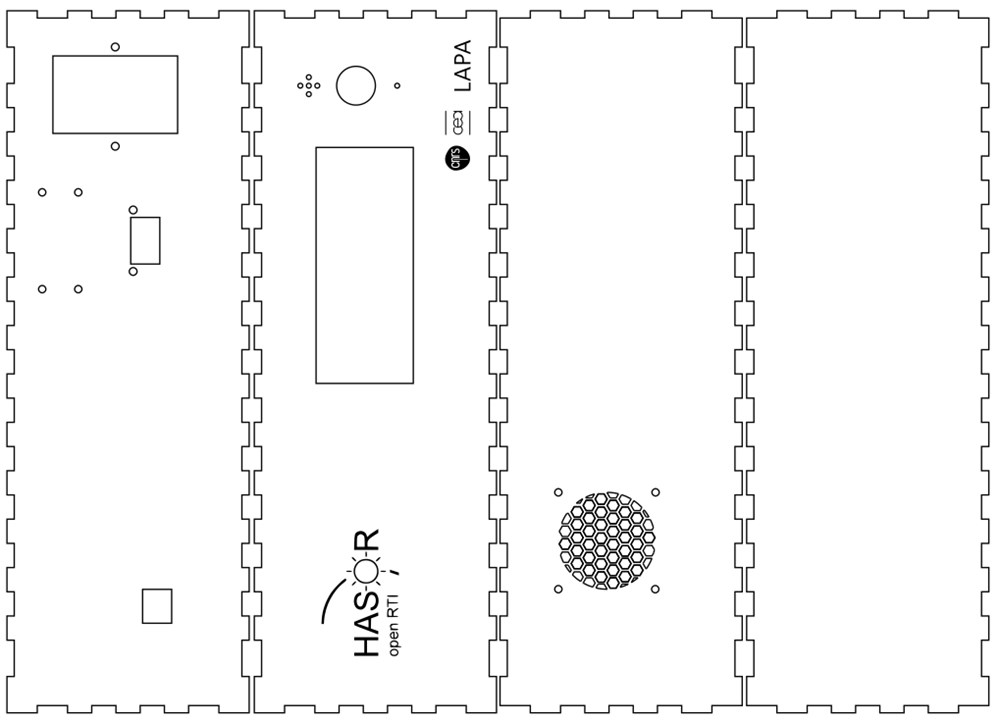

    • image 4 sides of the box

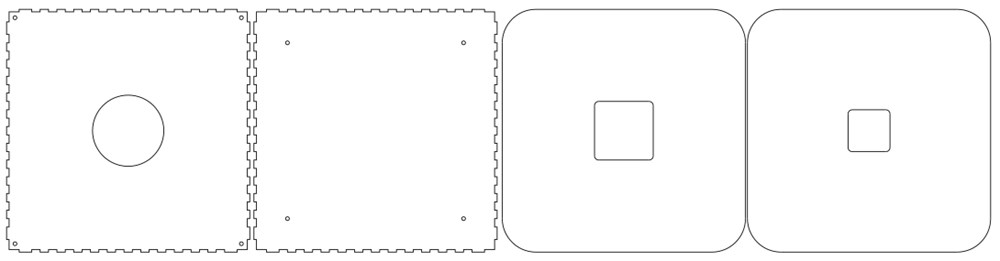

    image A montage of the top/bottom and 2 parts of the top plate

    The top face and plate can be unscrewed for maintenance.

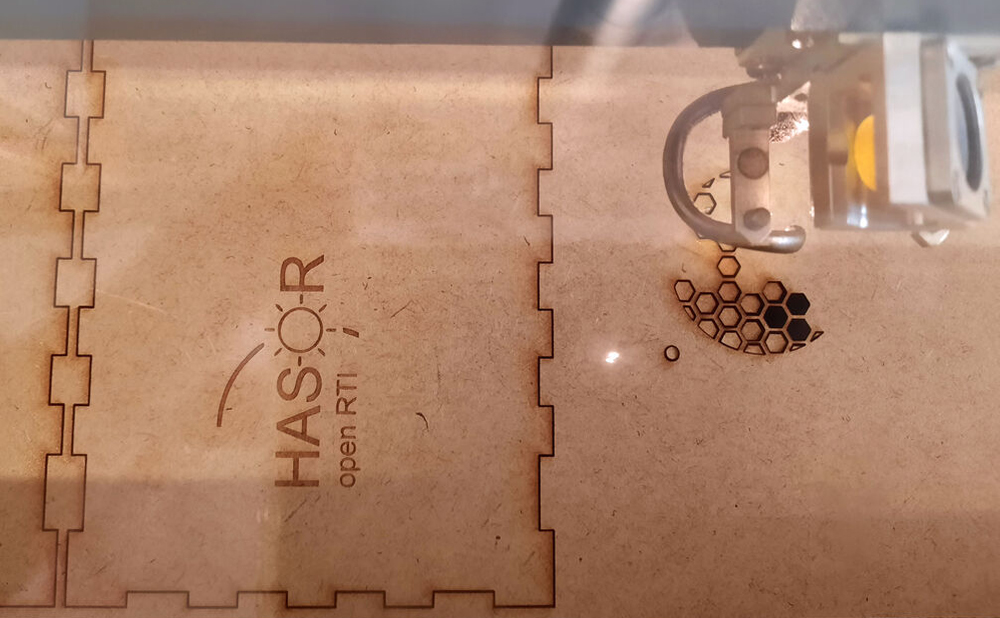

    image Wood sheet during laser cutting


    image Once laser cutted, all the part are fixed together with wood glue.

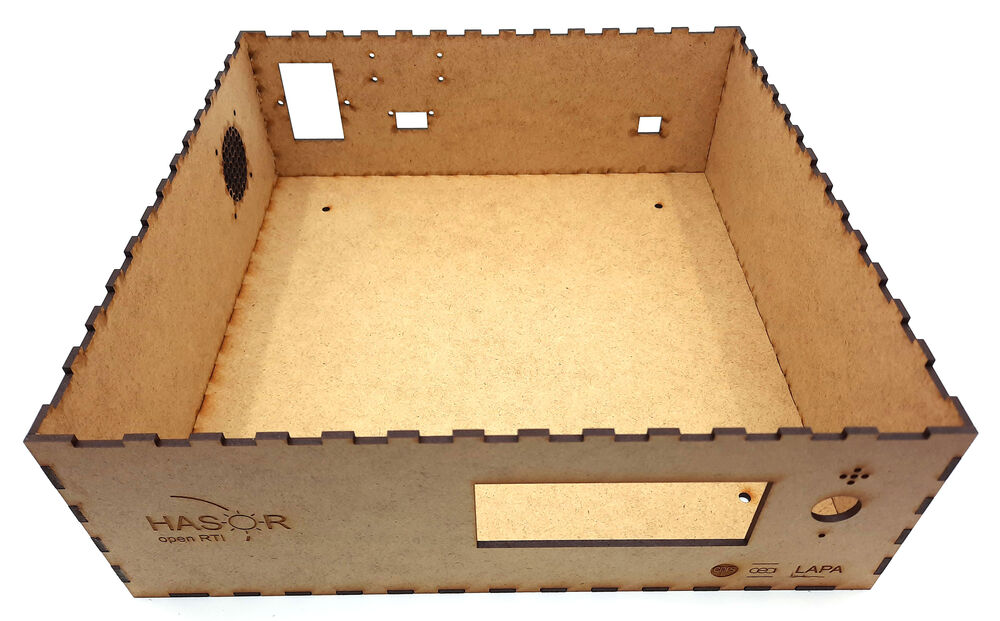

    image Box without cover
